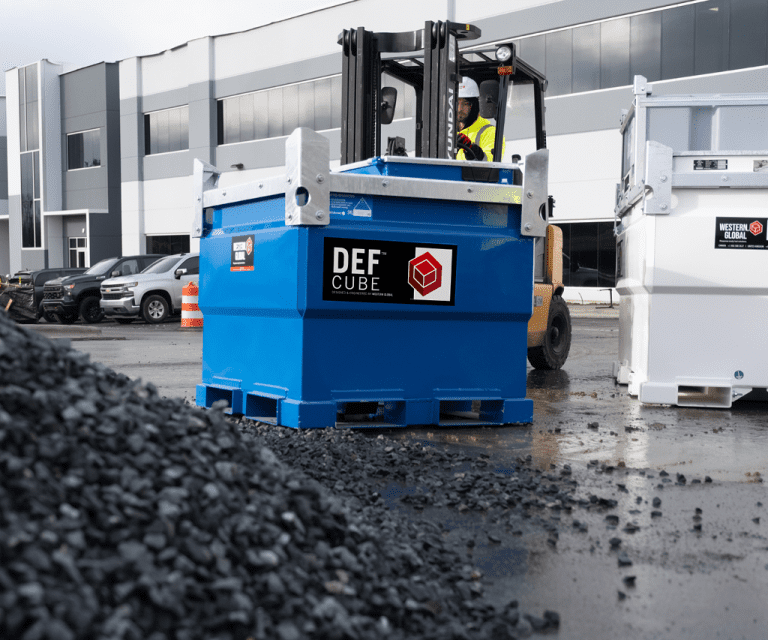

DEFCUBE 132Gal/ 400 L Transportable Diesel Exhaust Fluid Tank w/ 115V 11GPM Kit DEFCBN0005-115M

DEFCUBE: Transportable, 400 Ltr / 132 US Gallon double walled, RAL5005 Signal Blue Diesel Exhaust Fluid (DEF) storage tank with a Tecalemit 115V, 11GPM DEF pump with bracket & fittings

A double walled portable DEF tank that provides 110% containment for diesel exhaust fluid. The DEFCube comes rental ready, with a robust design that can be lifted directly onto site and used immediately.

DEF storage tanks done right
Western Global, has taken a different approach to DEF storage that meets your requirements. The DEFCube is a bulk DEF tank that allows you to store DEF onsite for a long period of time, no matter the environment.

This DEF storage tank comes with a poly inner and a steel outer tank which helps maintain the temperature of your DEF, making it easier to store onsite in both hot and cold conditions.

As an extra cost-saving measure that gives you more control while refilling, our AutoDEF replenish system can be purchased and installed with your DEFCube.

Portable DEF Tank
The DEFCube can be transported onto, remote sites safely and securely. You can lift your portable DEF container directly onto site, so you can get straight to it, rather than waiting for fuel deliveries or spending a lot of time setting up.

For sites that are logistically challenging, the DEFCube is easily maneuverable. It can be transported around with a pallet jack and forklift, it also benefits from a stackable design, so you don’t need to worry about our DEF tank taking up too much space.

FEATURES:

• LOCKABLE EQUIPMENT CABINET
  Secure lockable compartment for pumps & accessories.
• STACKABLE DESIGN
  Stackable full (2 high) or empty (3 high).
• RENTAL READY
  Robust ‘rental ready’ design with outer containment tank.
• REMOVABLE INNER TANK
  Removable inner polyethylene tank (ideal for storing DEF).
• HEATER KIT
  Optional heater kit to keep DEF from freezing in cold climate applications.16’ feed hose to link to generator or other equipment (option for heated hose with add-on heater kit).
• FOUR WAY FORKLIFT POCKETS
  Forklift pockets and lifting lugs for ease of transport.

Ideal uses and applications:

• GENERATORS AND AUXILIARY EQUIPMENT
  The DEF Cube can be easily connected to multiple generators to supply DEF in the same way auxiliary diesel tanks are connected to a generator unit. An optional 115V AC heater kit includes a heating jacket and heated hose line which is powered by the generator to prevent the DEF from freezing in cold climate operations.
• SHORT TERM DEF REQUIREMENT
  The DEF Cube is the ideal solution for short term, onsite DEF storage. Due to its mobile design, the DEF Cube can transport DEF to any site, reaching even the most difficult locations.

Capacity

• Litres: 528
• US Gallon: 132
• Imp Gallon:

Dimensions: in.

• Length: 44  in
• Width: 44 in
• Height: 45 in

Outer Tank Thickness:

• n/a


Inner Tank Thickness: mm (gauge)

• n/a


Weight (Empty): lbs. (Kg)

• 723 lbs.


Weight (Full):

• 1,825 lbs.

Optional pump 115V AC pump for ad-hoc filling of other equipment

Optional heater kit for tank with generator feed

Heating jacket for inner tank 2,300W
Heated feed hose 400W
Heating controller module with thermostat
115V AC power cable 20’ length

Contact us to learn more about ENVIROCUBE tanks or get a quote in less than 24 hours! For immediate assistance, please call us direct.
