Description

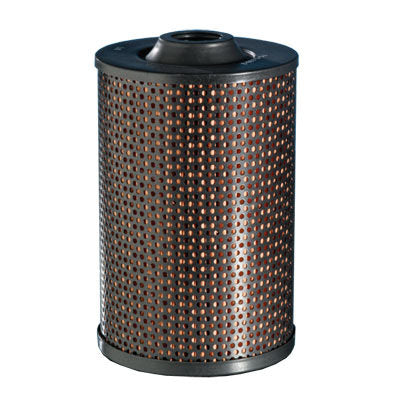

Facet Aviation 1 Micron Filter Cartridge - CC-22-7
Facet - CC-22-7 - 1 Micron Coalescer Cartridge, 6 in. x 12 inch, up to 60 GPM, Jet Fuel / Avgas, Flow Direction: Outside to Inside

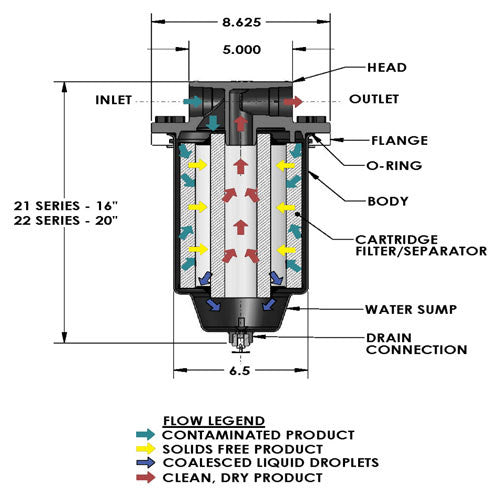

Facet 22 Series filter separator cartridges provide long service life and high solids holding capacity with no unloading characteristics. Theses filter separator cartridges effectively remove water and solids from fuels.
STANDARD DESIGN FEATURES
- Recommended maximum operating temperature: 240°F (115°C)
- Maximum differential pressure: 75 psi (517 kPa)
- Fluid pH range: 5 to 9
- Flow direction: Outside to in
MATERIALS
- Carbon steel structural components
- All metal components coated to protect against corrosion
- Standard gaskets are Buna-N (other materials available upon request)
