Description

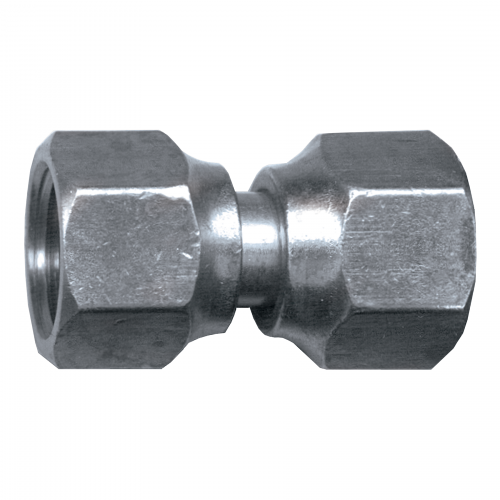

Fairview Steel Union; 1 FJICSW - S3542-16
Applications:
JIC 37° flare fittings may be used for a wide range of applications including hydraulic, freshwater, fuel and lubricating oil among others.
Working Pressure:
Dash Size Tube O.D. PSI Tube Wall
-3 3/16 4000 .030
-4 1/4 4000 .030
-5 5/16 4000 .032
-6 3/8 4000 .032
-8 1/2 4000 .032
-10 5/8 3000 .035
-12 3/4 3000 .035
-14 7/8 2500 .035
-16 1 2500 .035
-20 3/4 2000 .035
-24 3/4 1500 .035
-32 3/4 1125 .035
Working Temperature:
-65°F (-54°C) to 250°F (120°C)
NOTE: If a fitting has multiple ends, (i.e. 1/2 male pipe to 3/8 male pipe) or one or more different style ends, (i.e. O-ring boss to male pipe threads.), it is recommended that the lower pressure of the two end styles must be recognized as the working pressure rating for that fitting.
