Description
- Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling large equipment with fuel tanks sized at 20-80 gallons

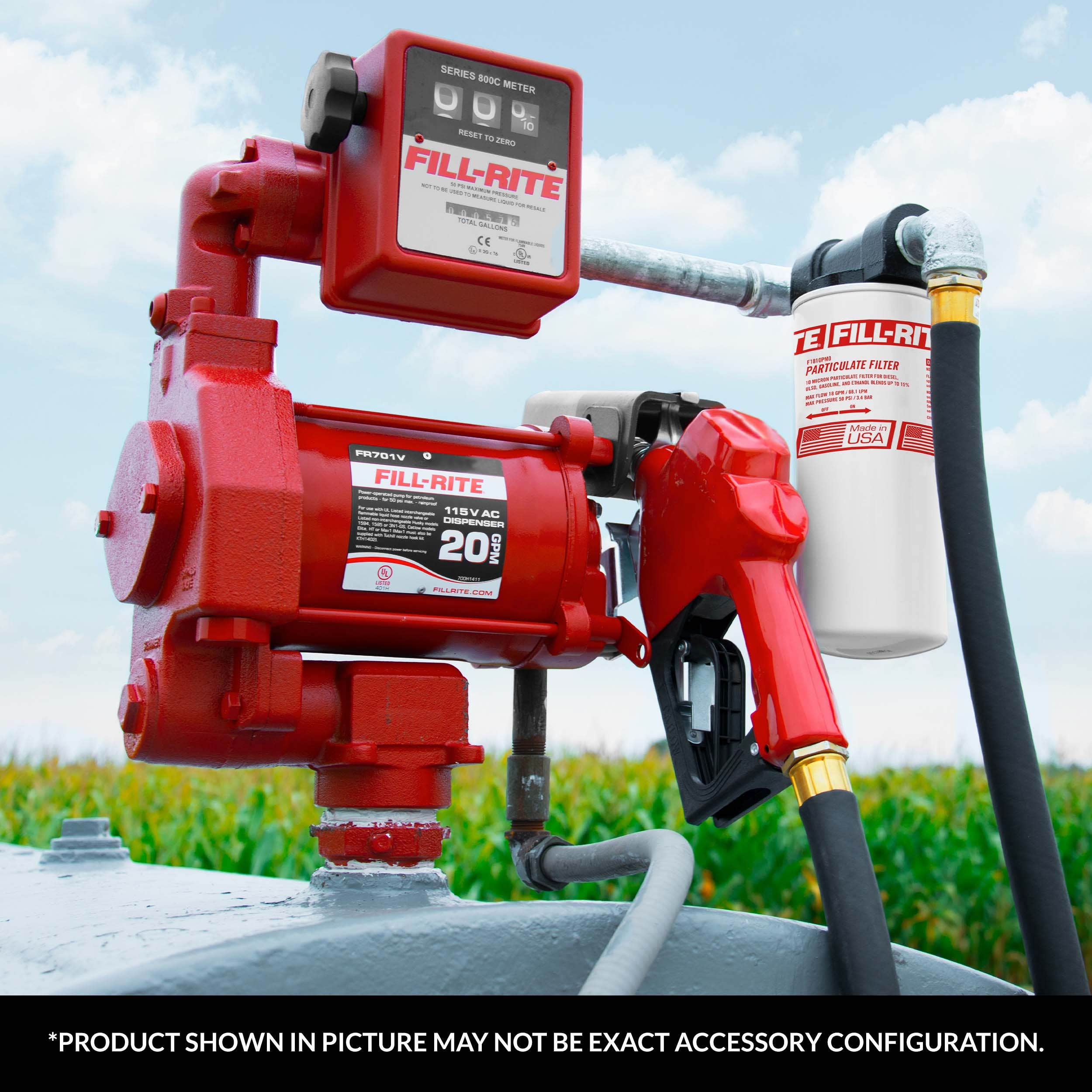

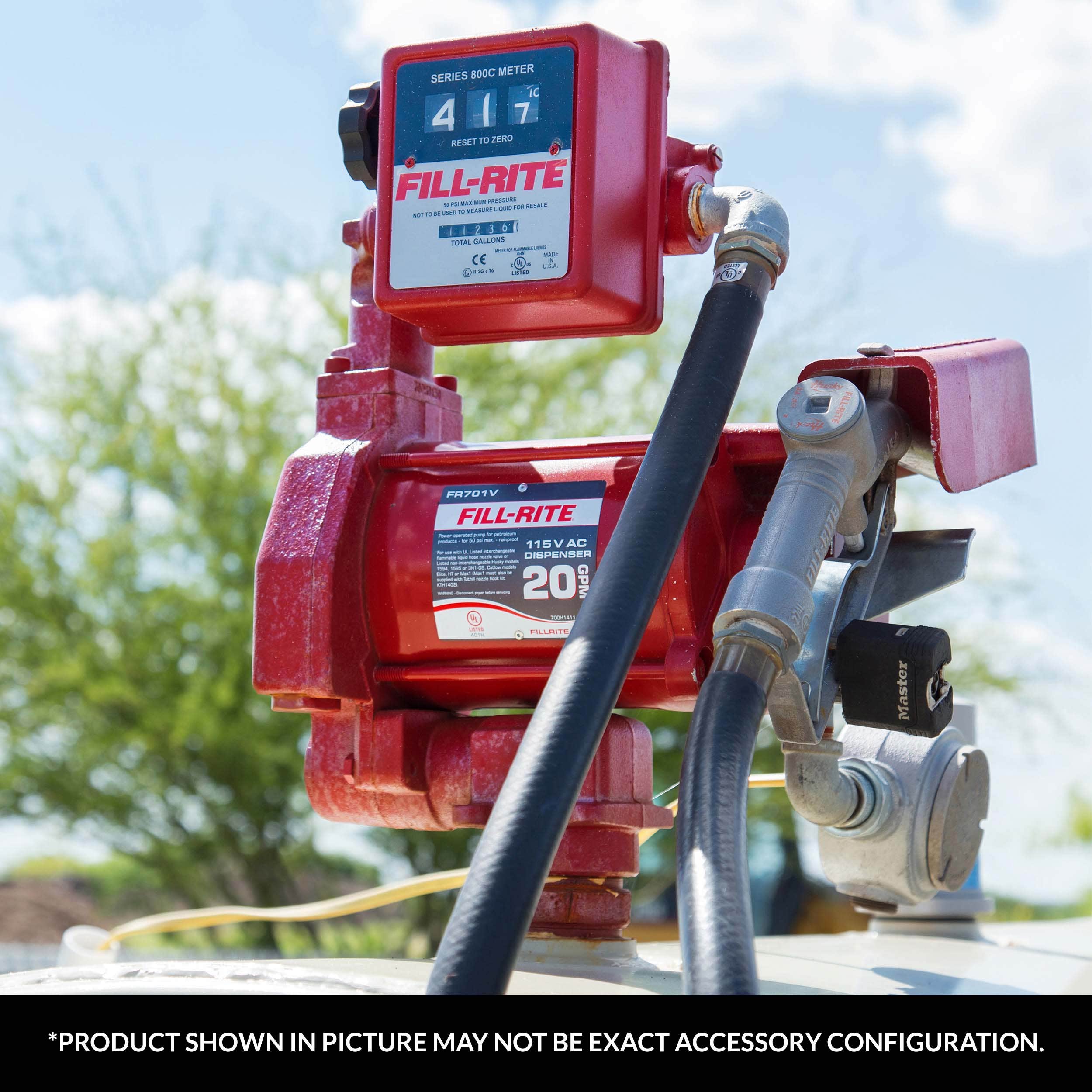

- Stationary Tanks — powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks
- Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
- Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
- Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
- Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? Fill-Rite Company has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
PREFORMANCE:
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | -- |
| Motor Power (HP) | 0.33 |
| Max Current (A) | 5.5 A |
| Thermal Protection Switch | -- |
| Self Priming | -- |
| Suction Lift (ft.) | 15 ' |
| Dry Vacuum (in. Hg) | 12 |
| Operating Temperature Range (°F) | -- |
| Discharge Head (ft) | 53 ' |
| Strainer Mesh Size (Micron) | 40 x 40 x .010" |
| Max Discharge Pressure (PSI) | 23 PSI |
| Viscosity Range (cSt) | 0.38 - 2.4 |

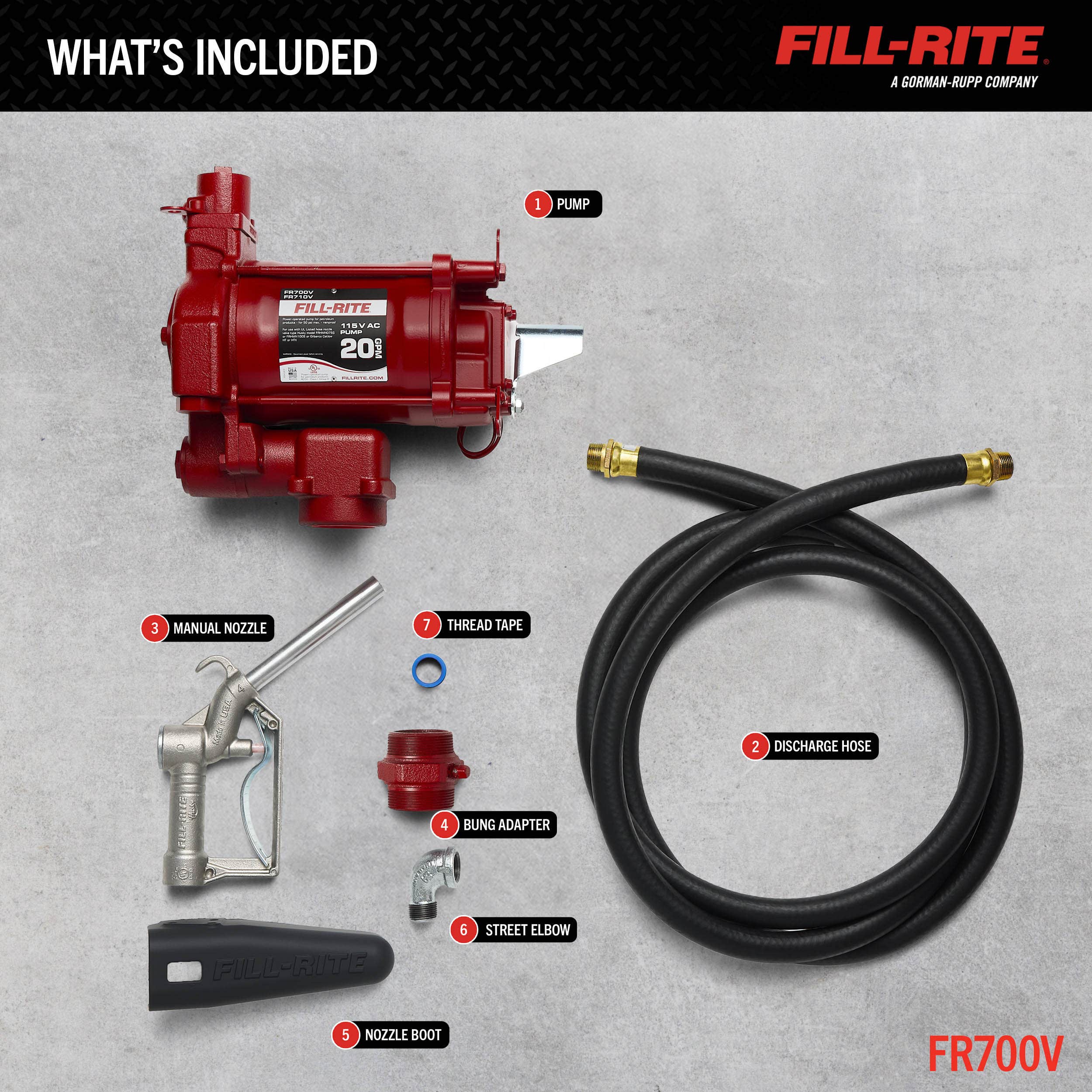

INCLUDED ACCESSORIES:
| Additional Accessories | -- |
|---|---|
| Static Wire | -- |
| Ground Wire | -- |
| Cable Length (ft) | -- |
| Cable Gauge (GA) | -- |
| Cable Connection | Hard-Wire |
| Filter | -- |
| Filter Function | -- |
| Suction Pipe | -- |
| Suction Hose | -- |
| Pipe Diameter (in.) | -- |
| Discharge Hose | ¾” X 12’ UL Listed Hose with Static Ground Wire |
| Nozzle | ¾” Cast Aluminum Nozzle Spout |
| Swivel | -- |
| Swivel Type | -- |
| Swivel Thread Type | -- |
| Swivel Size | -- |
| Pulser | -- |
| Anti-Siphon | -- |
| Additional Accessories | -- |

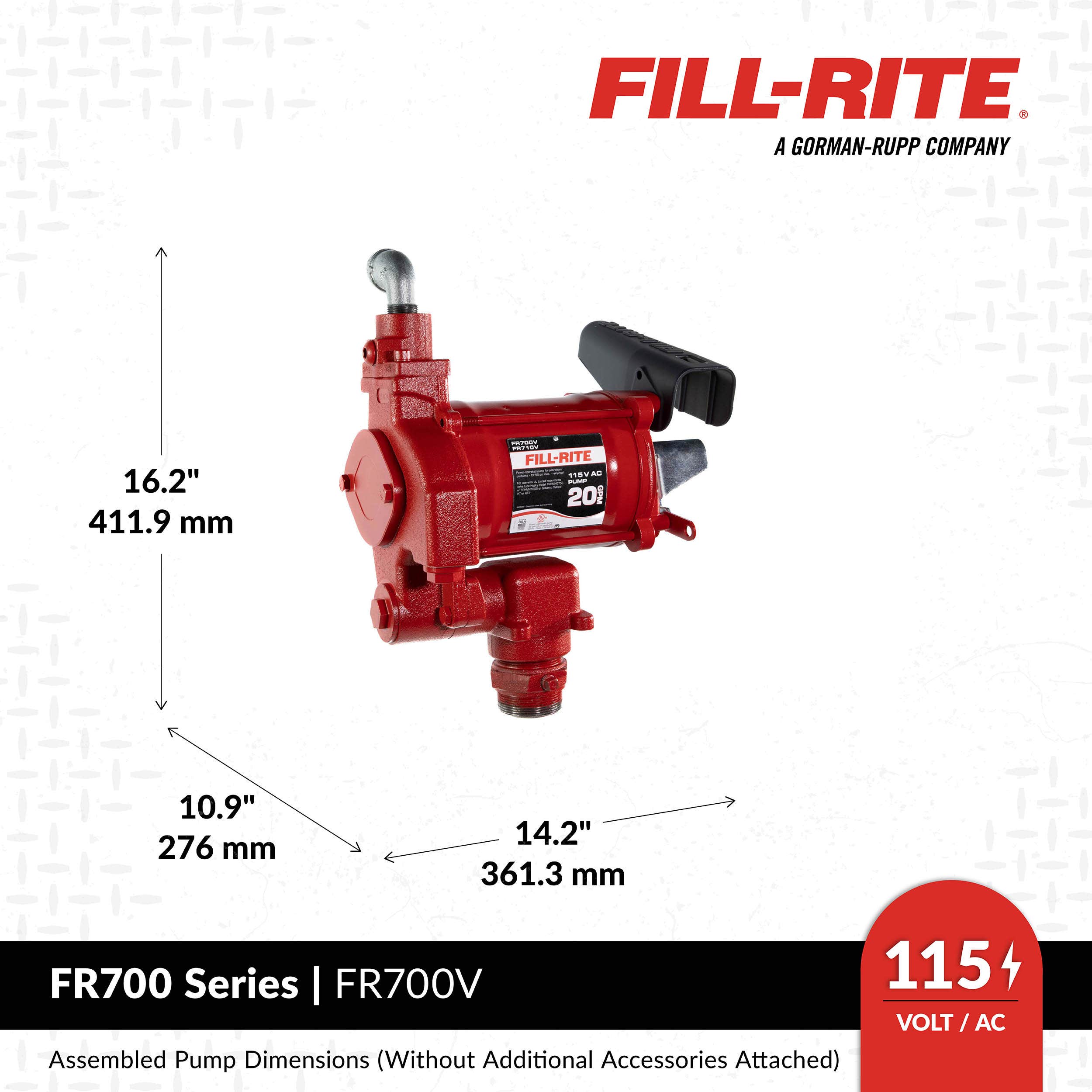

DIMENSIONS:
| Assembled Product Height x Width x Depth (in.) | 17.3 x 14.2 x 11.3 |
|---|---|
| Assembled Product Weight (lbs.) | 48.8 |
| Package Height x Width x Depth (in.) | 10.25 x 20.56 x 19.56 |
| Gross Weight (lbs.) | 57.40000 lbs |
| Less Than Load (LTL) Freight | Yes |
