Description
- Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
- Nickel-Plated Exterior — thick nickel-plated exterior provides additional corrosion resistance and protection from tough environmental conditions
- Extreme Accuracy — measures fuel more accurately than comparable mechanical models at +/- 1.25% accuracy, ensuring the most precise record-keeping for your business
- Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
- Ready Out of Box — factory pre-calibration for numerous fluids makes installation quick, saving you time and eliminating frustration
- Complete Customization — track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
- High-Volume Applications — 4-digit digital counter registers flow rates between 6-40 GPM and up to 999.9 gallons or liters per batch, perfect for heavy equipment with large fuel tanks
- Lifetime Tracking — 7-digit non-resettable counter tracks total volume transferred over lifetime of meter
- Fluid Compatibility — designed for daily use with designed for daily use with diesel, gasoline, kerosene, mineral Spirits, heptane, hexane, and biodiesel blends up to B20
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? Fill-Rite Company has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
PERFORMANCE
| Flowrate Range (GPM) | 6-40 GPM/ 23-151 LPM |
|---|---|
| Power Type | -- |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, Mineral Spirits, Heptane, Hexane |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Operating Temperature Range (°F) | -40 - 140°F / -40 - 60°C |
| Max Operating Pressure (PSI) | 50 |
| Accuracy (+/- %) | 1.25 % |
| Repeatability (+/- %) | 0.38 % |
| Display Type | LCD |
| Display Digits | 4 |
| Pulse Rate | 10/100 PPG | 10/125 PPL |
| Power Source | Electrical |
| Totalizer | Yes |
| Pulse Output | Yes |

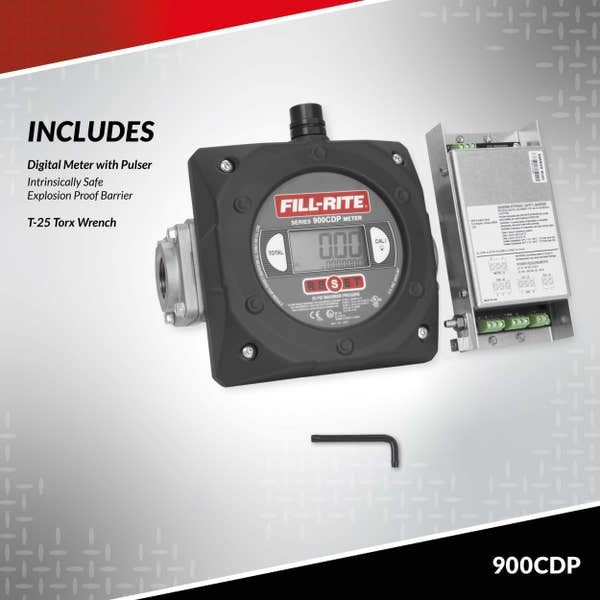

INCLUDED ACCESSORIES

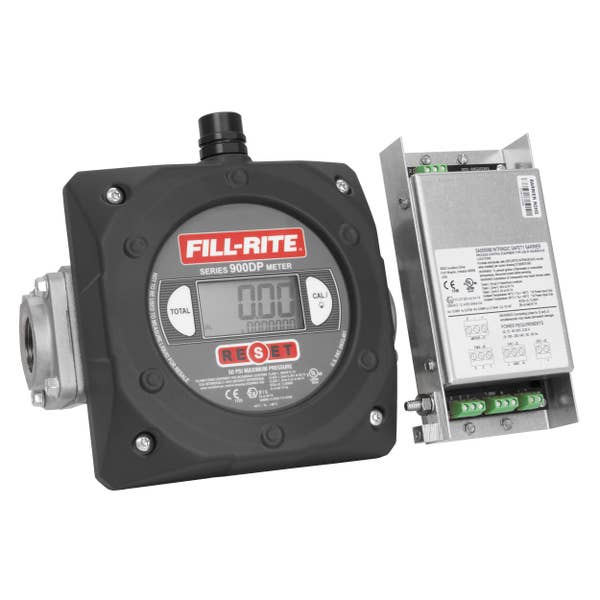

| Pulser | -- |
|---|---|
| Batteries Required | Yes |
| Batteries Included | Yes |
| Battery Quantity | 2 |
| Battery Size | AA |
| Battery Type | Alkaline |
| Additional Accessories | -- |
| Additional Accessories | -- |
DIMENSIONS

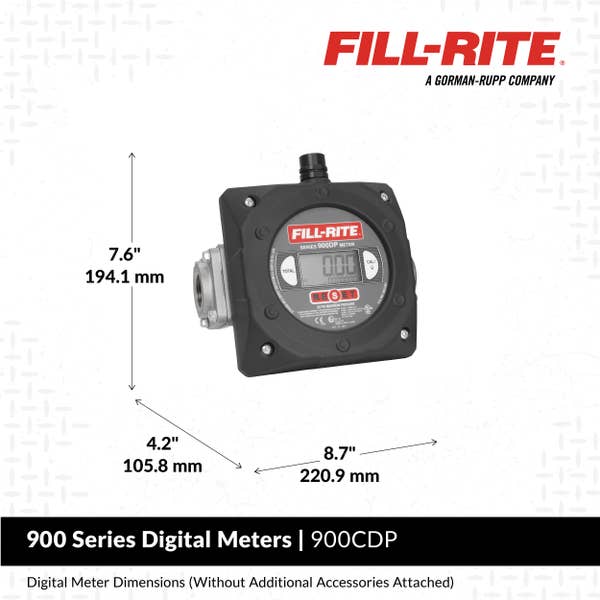

| Assembled Product Height x Width x Depth (in.) | 7.5 x 9.5 x 4 |
|---|---|
| Assembled Product Weight (lbs.) | 7 |
| Package Height x Width x Depth (in.) | 7.5 x 10 x 11.88 |
| Gross Weight (lbs.) | 9.60000 lbs |
