TRANSCUBE/ FUELCUBE FUEL PUMP KIT - 1”, 12 VDC, 20 GPM - G20-012ADK

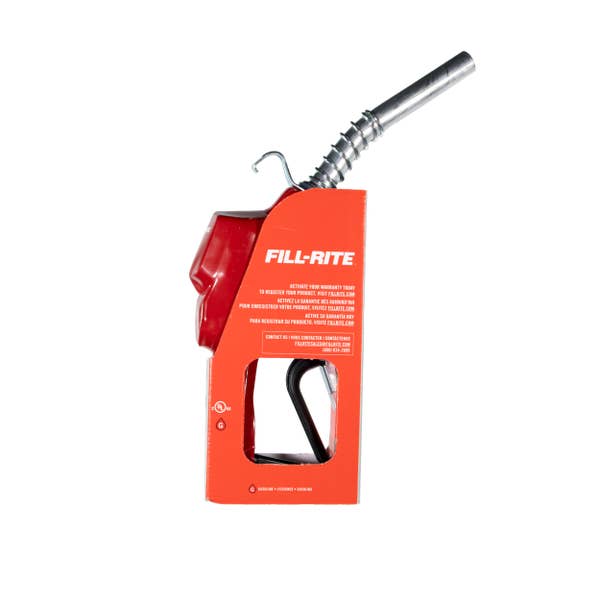

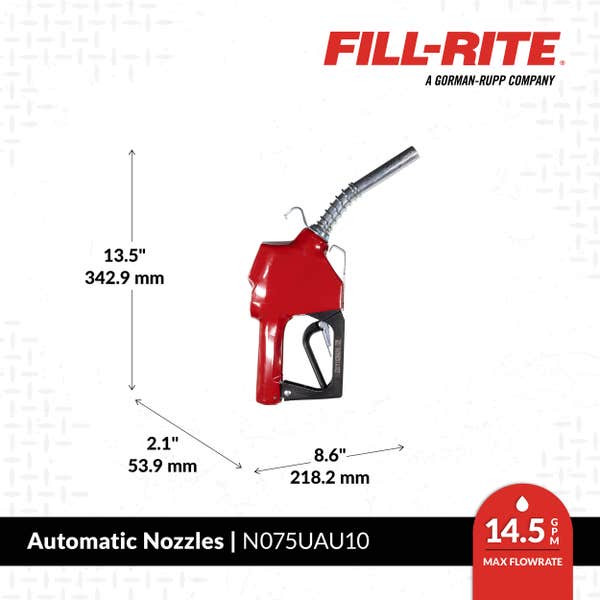

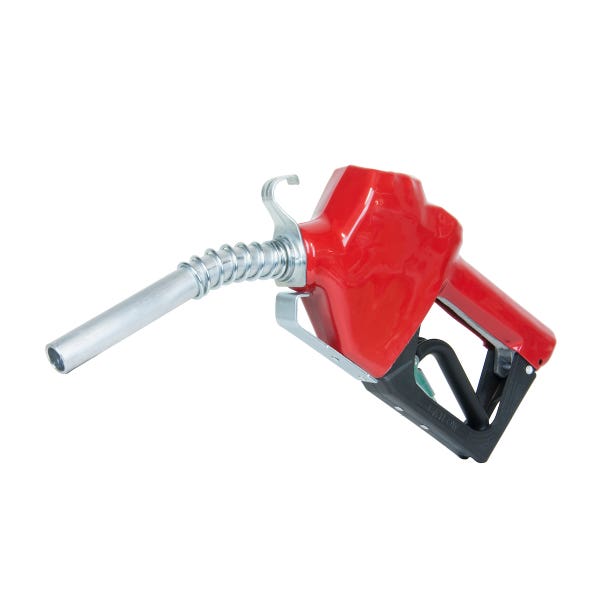

The N075UAU10 is a 0.75" automatic shutoff nozzle designed for fuel transfer. This model is equipped with a 13/16" spout and a red jacket, ideal for gasoline applications. Please note: Fill-Rite auto shut off nozzles are not intended to be used for gravity flow systems
Features:
- Cast-Aluminum Construction – engineered with rugged cast-aluminum construction, built to last through the most demanding applications
- Easy to Use – included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage
- Adjustable Latching – three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment
- Automatic Shut-Off – automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient
- Multiple Configurations – available in a variety of configurations to meet your application’s temperature, flow, and fluid compatibility requirements
Performance:
| Nozzle | ¾” Automatic Unleaded Nozzle |
|---|---|
| Max Flowrate | 14.5 GPM / 54.8 LPM |
| Compatible Fluids | Diesel, Gasoline, Kerosene, B20, E15 |
| Inlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Nozzle Inlet Size (in.) | -- |
| Spout Diameter (in.) | 0.8125 |
| Min Operating Temperature (°F) | -- |
| Max Operating Pressure (PSI) | 50 |
| Flowrate Range (GPM) | -- |
| Nozzle Type | Automatic |
