Description

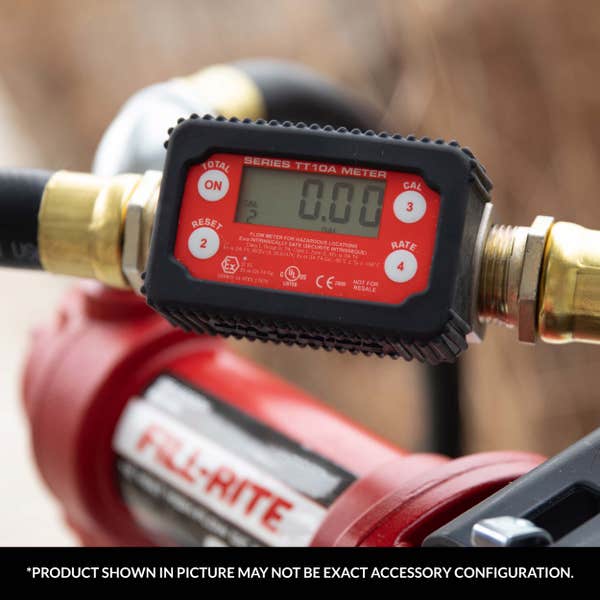

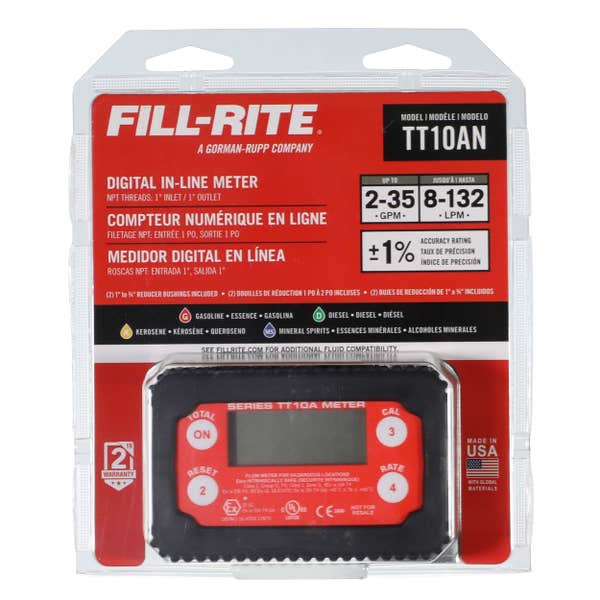

Fill-Rite 2-35 GPM 4-Digit Digital Fuel Transfer Meter - TT10AN
- (NOT FOR FLUID RESALE)
- Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
- Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible

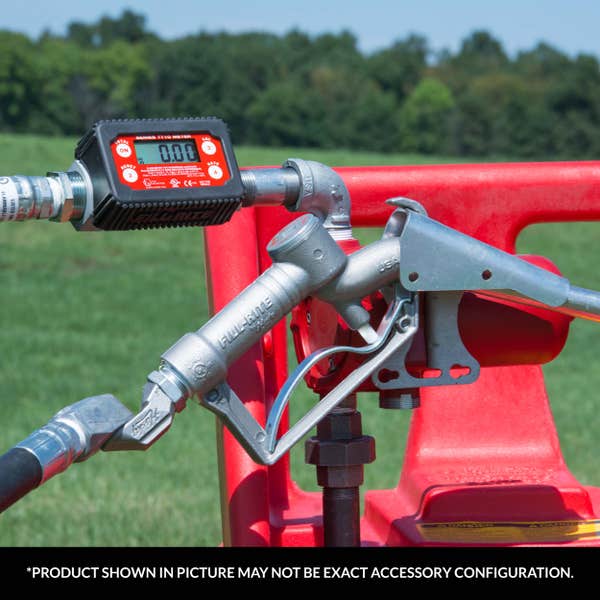

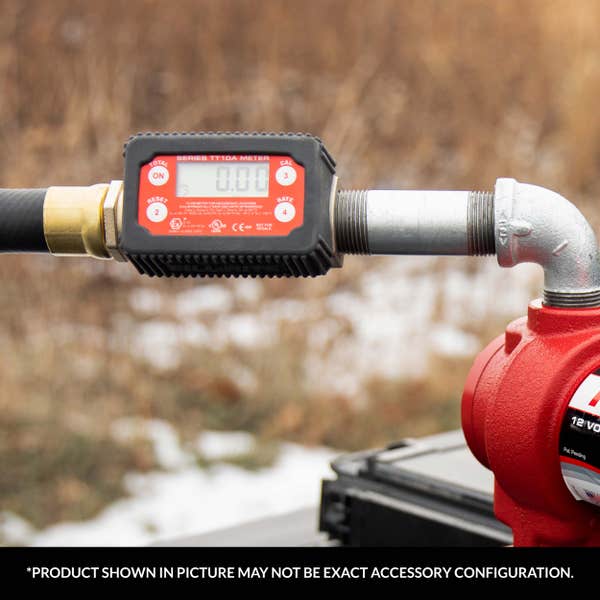

- Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
- Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
- Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
- Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications
- Lifetime Tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced
You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? Fill-Rite Company has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
PERFORMANCE:
| Flowrate Range (GPM) | 2-35 GPM/ 8-132 LPM |
|---|---|
| Power Type | -- |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Operating Temperature Range (°F) | -40 - 140°F / -40 - 60°C |
| Max Operating Pressure (PSI) | 50 |
| Accuracy (+/- %) | 1 % |
| Repeatability (+/- %) | 0.3 % |
| Display Type | LCD |
| Display Digits | 4 |
| Pulse Rate | -- |
| Power Source | AA Batteries |
| Totalizer | Yes |
| Pulse Output | No |
INCLUDED ACCESSORIES:
| Pulser | -- |
|---|---|
| Batteries Required | Yes |
| Batteries Included | Yes |
| Battery Quantity | 2 |
| Battery Size | AA |
| Battery Type | Alkaline |

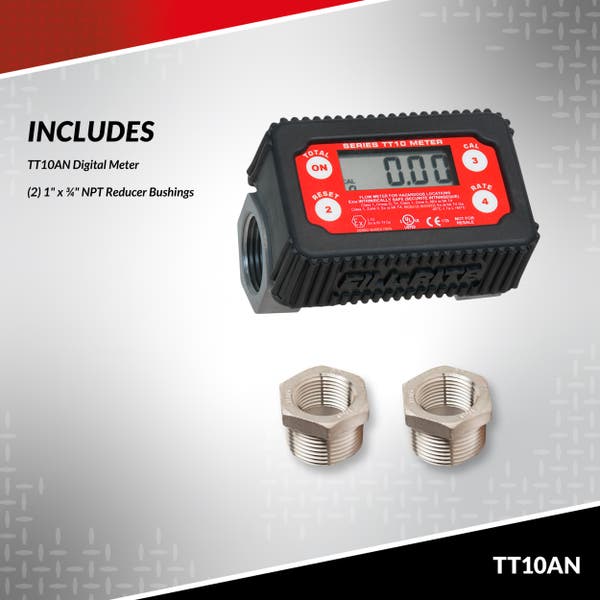

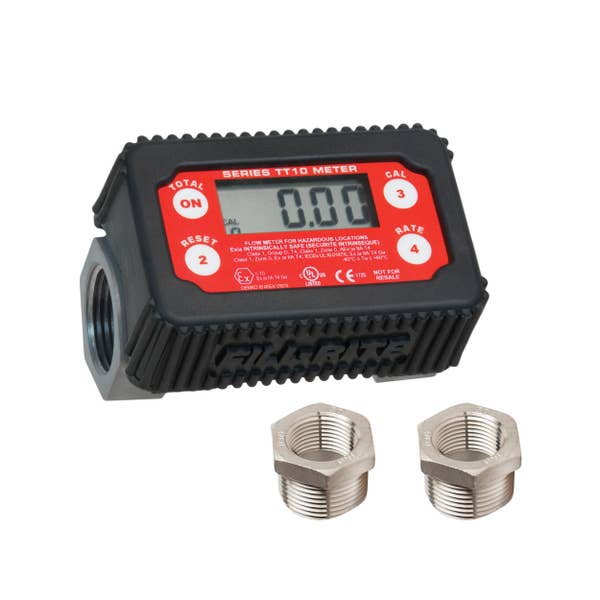

| Additional Accessories | (2) 1" X 3/4" NPT Reducer Bushings |
