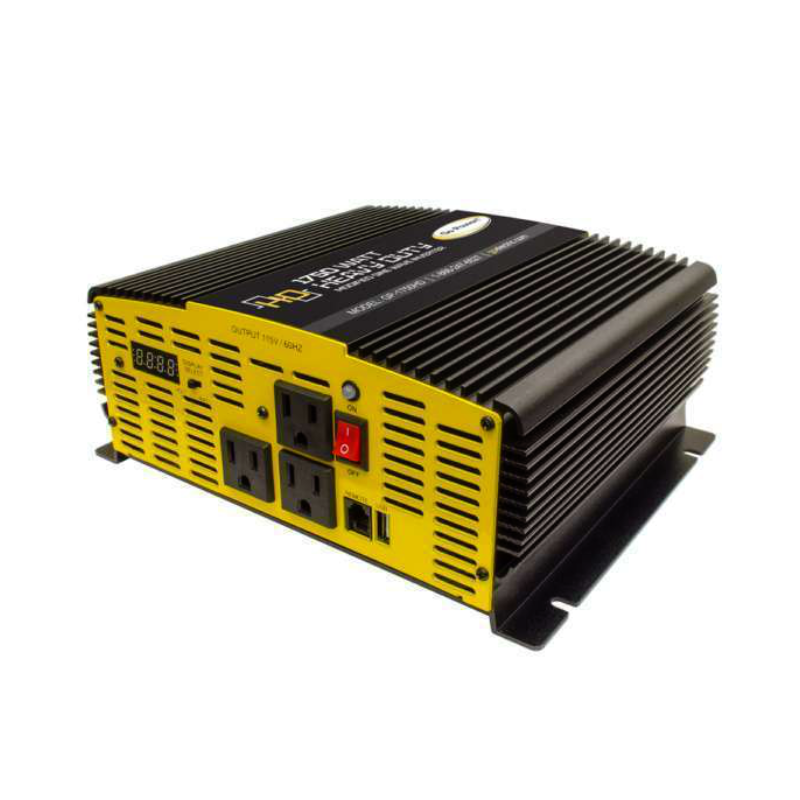

Go Power GP-1750HD 1750W Heavy Duty Modified Sine Wave Inverter

GP-1750HD

GP-3000HD

GP-5000HD

Continuous Output Power

1750 W (VA)

3000 W (VA)

5000 W (VA)

Maximum Surge Rating

3500 W (VA)

6000 W (VA)

10000 W (VA)

Output Waveform

Modified Sine Wave

Output Voltage Range

100 – 120 VAC RMS +5/-15

Input Voltage

10.5 – 16 VDC

Efficiency

≥80%

≥85%

≥80%

Operating Specs:

No Load Current Draw

≤1 A

≤1.2 A

≤1.2 A

USB Output

4.75 – 5.25 VDC / 2.1 A

Protection

Overload, Over Temperature,

Over/Under Voltage, Short Circuit

Low Battery Alarm ± 0.5 V

10.5 V

Low Battery Shutdown ± 0.5 V

10 V

Operating Temperature Range

32˚F – 104˚F (0˚C – 40˚C)

Storage Temperature Range

14˚F – 122˚F (-10˚C – 50˚C)

Cooling

Thermostatically Controlled Fan

AC Output Connections

3 Standard North American Outlets

4 Standard North American Outlets

Remote Power Option

Yes

Product Specs:

Dimensions (L x W x H)

8.07” x 8.86” x 3.50”

(205 mm x 225 mm x 89 mm)

11.41” x 9.92” x 4.13”

(290 mm x 252 mm x 105 mm)

18.50” x 9.92” x 4.13”

(470 mm x 252 mm x 105 mm)

Weight

6.42 lbs (2.91 kg)

10.54 lbs (4.78 kg)

15.65 lbs (7.10 kg)

Warranty

1 Year

Inverter Install Kits (sold separately)

GP-DC-KIT3

GP-DC-KIT5

Remotes (sold separately)

GP-REMOTE
