Description

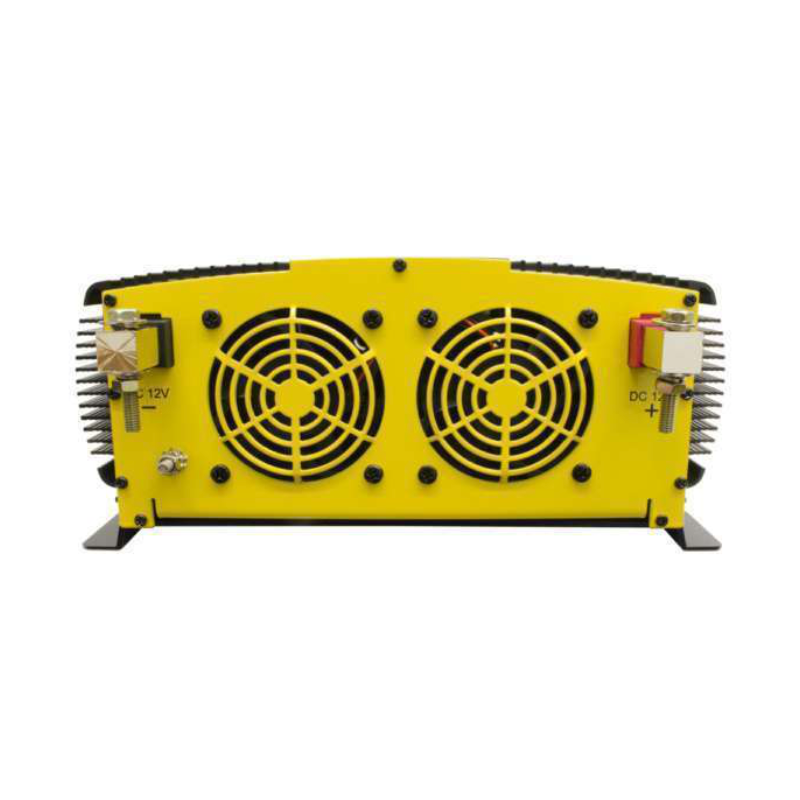

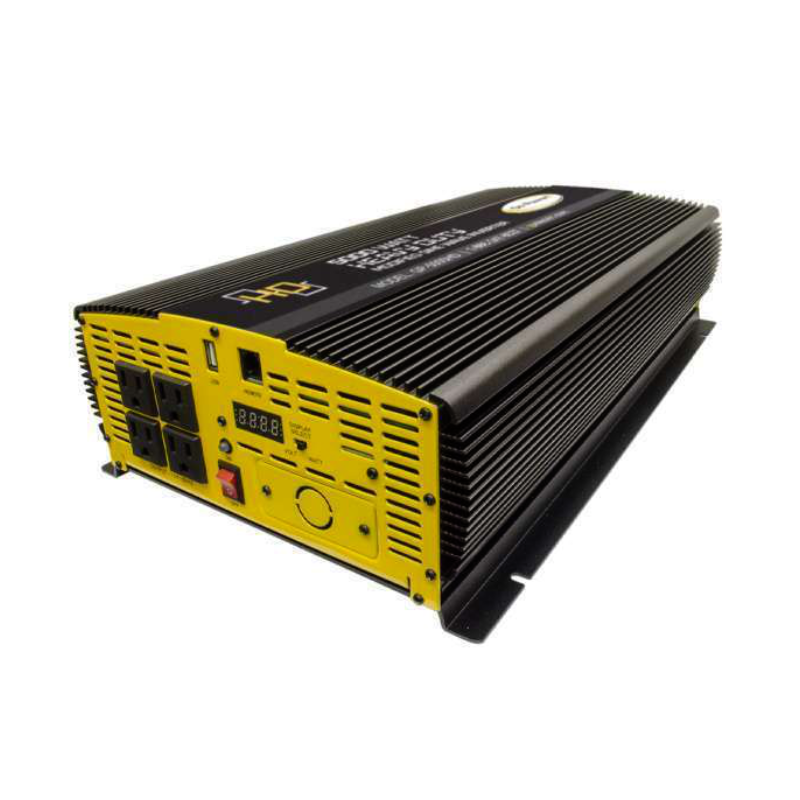

Go Power GP-5000HD 5000W Heavy Duty Modified Sine Wave Inverter
The largest of the HEAVY-DUTY MODIFIED SINE INVERTER LINE, the Go Power! GP-5000HD provides enough power to run several appliances at once. With a 5000-watt output, this inverter is the best choice for most large power requirements. Plug your appliances directly into its four AC outlets, or wire it into your electrical system using an OPTIONAL GO POWER! TRANSFER SWITCH.
Ideal for powering several appliances, or as a source of emergency back-up power, the GP-5000HD fits a range of applications.
Applications
Product Overview
MODEL: GP-5000HD
The Go Power! 5000 Watt Heavy-Duty Modified Sine Wave Inverter runs larger loads: run multiple appliances and tools at once. Includes four outlets.
Power Specs:
|
|
GP-1750HD |
GP-3000HD |
GP-5000HD |
|
Continuous Output Power |
1750 W (VA) |
3000 W (VA) |
5000 W (VA) |
|
Maximum Surge Rating |
3500 W (VA) |
6000 W (VA) |
10000 W (VA) |
|
Output Waveform |
Modified Sine Wave |
||
|
Output Voltage Range |
100 – 120 VAC RMS +5/-15 |
||
|
Input Voltage |
10.5 – 16 VDC |
||
|
Efficiency |
≥80% |
≥85% |
≥80% |
|
Operating Specs: |
|
|
|
|
No Load Current Draw |
≤1 A |
≤1.2 A |
≤1.2 A |
|
USB Output |
4.75 – 5.25 VDC / 2.1 A |
||
|
Protection |
Overload, Over Temperature, Over/Under Voltage, Short Circuit |
||
|
Low Battery Alarm ± 0.5 V |
10.5 V |
||
|
Low Battery Shutdown ± 0.5 V |
10 V |
||
|
Operating Temperature Range |
32˚F – 104˚F (0˚C – 40˚C) |
||
|
Storage Temperature Range |
14˚F – 122˚F (-10˚C – 50˚C) |
||
|
Cooling |
Thermostatically Controlled Fan |
||
|
AC Output Connections |
3 Standard North American Outlets |
4 Standard North American Outlets |
|
|
Remote Power Option |
Yes |
||
|
Product Specs: |
|
|
|
|
Dimensions (L x W x H) |
8.07” x 8.86” x 3.50” (205 mm x 225 mm x 89 mm) |
11.41” x 9.92” x 4.13” (290 mm x 252 mm x 105 mm) |
18.50” x 9.92” x 4.13” (470 mm x 252 mm x 105 mm) |
|
Weight |
6.42 lbs (2.91 kg) |
10.54 lbs (4.78 kg) |
15.65 lbs (7.10 kg) |
|
Warranty |
1 Year |
||
|
Inverter Install Kits (sold separately) |
GP-DC-KIT3 |
GP-DC-KIT5 |
|
|
Remotes (sold separately) |
GP-REMOTE |
||
home as a source of backup power.
