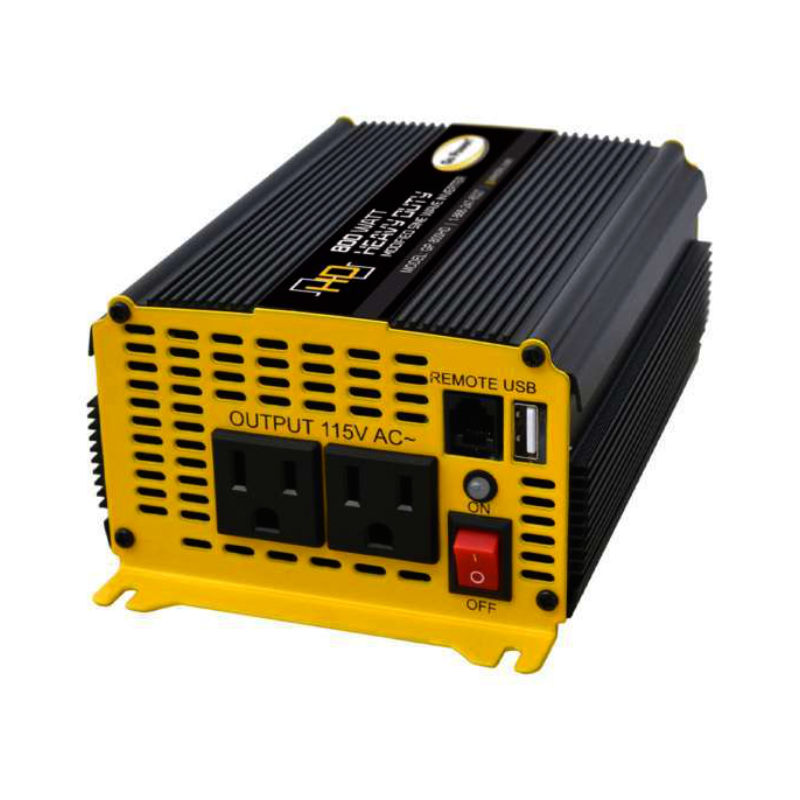

Go Power GP-800HD 800W Heavy Duty Modified Sine Wave Inverter
A versatile performer for your mid-range power needs, the Go Power! GP-800HD heavy-duty modified sine wave inverter is powerful yet economical. Easy to install, connect the inverter directly to your battery, and then plug your appliances into its two AC outlets. Use the GP-800HD to power lights, drills, blenders and more.
When you're not using it, you can switch it off to conserve power. Ideal for powering kitchen appliances, or as a source of emergency back-up power, the GP-800HD fits a range of applications.
Applications
Product Overview
MODEL: GP-800HD
The Go Power! 800 Watt Heavy-Duty Modified Sine Wave Inverter provides mid-range power, ideally for medium-sized power tools or small refrigerator.
Power Specs:
|
|
GP-225HD |
GP-400HD |
GP-800HD |
GP-1000HD |
|
Continuous Output Power |
225 W (VA) |
400 W (VA) |
800 W (VA) |
1000 W (VA) |
|
Maximum Surge Rating |
450 W (VA) |
800 W (VA) |
1600 W (VA) |
2000 W (VA) |
|
Output Waveform |
Modified Sine Wave |
|||
|
Output Voltage Range |
100 – 120 VAC RMS +5/-15 |
|||
|
Input Voltage |
10.5 – 16 VDC |
|||
|
Operating Specs: |
|
|
|
|
|
Efficiency |
≥80% |
≥80% |
≥80% |
≥80% |
|
No Load Current Draw |
≤0.7 A |
≤0.7 A |
≤0.8 A |
≤0.8 A |
|
USB Output |
4.75 – 5.25 VDC / 2.1 A |
|||
|
Protection |
Overload, Over Temperature Over/Under Voltage, Short Circuit |
|||
|
Low Battery Alarm ± 0.5 V |
10.5 V |
|||
|
Low Battery Shutdown ± 0.5 V |
10 V |
|||
|
Operating Temperature Range |
32˚F – 104˚F (0˚C – 40˚C) |
|||
|
Storage Temperature Range |
14˚F – 122˚F (-10˚C – 50˚C) |
|||
|
Cooling |
Thermostatically Controlled Fan |
|||
|
AC Output Connections |
2 Standard North American Outlets |
|||
|
Remote Power Option |
No |
Yes |
||
|
Product Specs: |
|
|
|
|
|
Dimensions (L x W x H) |
5.27” x 3.86” x 2.05” (134 mm x 98 mm x 52 mm) |
6.30” x 4.25” x 2.64” (160 mm x 108 mm x 66 mm) |
7.48” x 4.88” x 2.95” (190 mm x 124 mm x 75 mm) |
9.44” x 4.88” x 2.95” (240 mm x 124 mm x 75 mm) |
|
Weight |
1.01 lbs (0.46 kg) |
1.54 lbs (0.70 kg) |
2.31 lbs (1.05 kg) |
3.11 lbs (1.41 kg) |
|
Warranty |
1 Year |
|||
|
Inverter Install Kits (sold separately) |
Auto Utility Adapter |
GP-DC-KIT-2 |
||
|
Remotes (sold separately) |
No Remote Power Option |
GP-REMOTE |
||
*Specifications subject to change without notice
