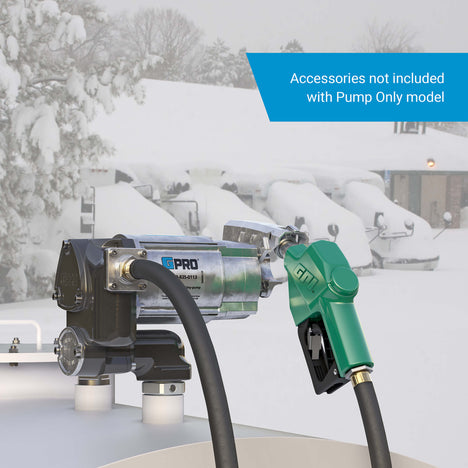

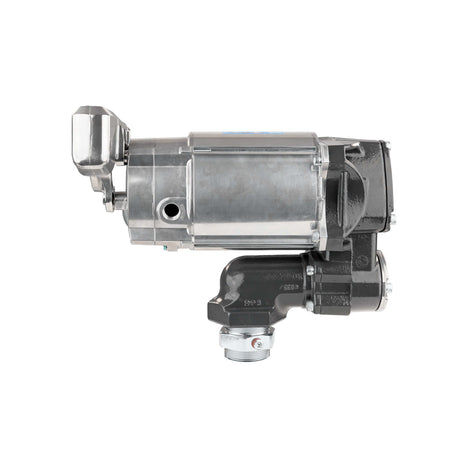

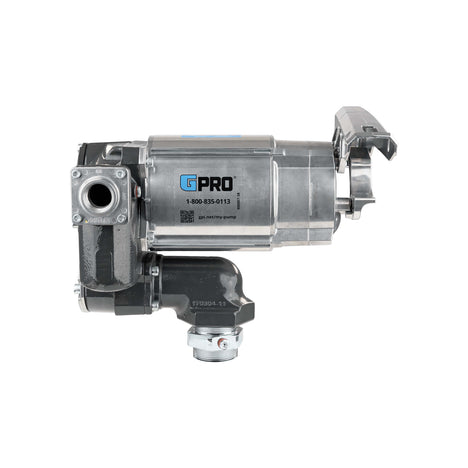

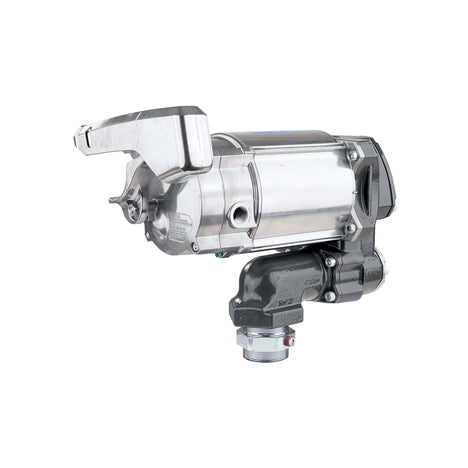

GPI GPRO 35 GPM 120V Fuel Transfer Pump - V35 Series
SKU 172000-51 | MODEL V35-115PO-N08+XT
Recommended for use with these fuels:
Avgas (100LL) | Diesel Fuel up to B20 | Gasoline up to E15 | Jet A | Jet A-1 | Kerosene
Description
The GPRO V35 is a professional-grade, heavy-duty AC fuel transfer pump engineered for high-volume applications in extreme conditions. With a 35 GPM flow rate and specialized components, it delivers dependable performance in both high-heat and sub-zero climates.

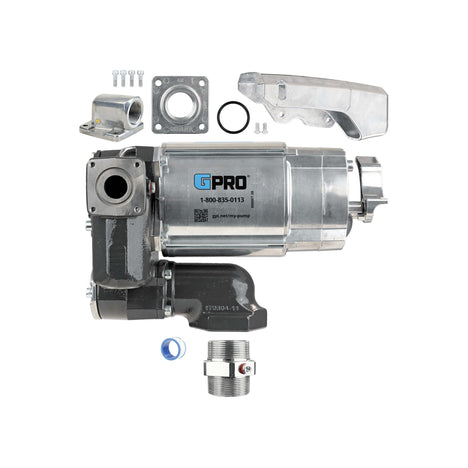

Its weather-sealed, corrosion-resistant design withstands harsh environments, while dual outlet adapters offer flexible installation to meet a variety of fueling layouts.
Designed for field-serviceability, the V35 helps reduce downtime and streamline maintenance—even in the most challenging environments. When conditions are unpredictable, the V35 delivers reliable fueling without compromise.
Its weather-sealed, corrosion-resistant design withstands harsh environments, while dual outlet adapters offer flexible installation to meet a variety of fueling layouts.
Designed for field-serviceability, the V35 helps reduce downtime and streamline maintenance—even in the most challenging environments. When conditions are unpredictable, the V35 delivers reliable fueling without compromise.

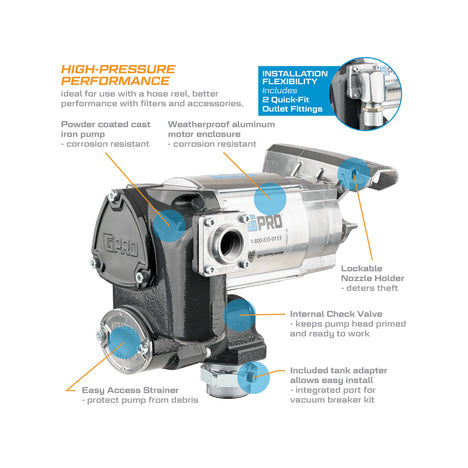

Features & Benefits
- What you demand - professional grade fueling at 35GPM for heavy-duty equipment
- A corrosion-resistant fuel transfer pump that stands up to harsh environments and Mother Nature - weatherproof tested
- Withstands the daily abuse of job-site handling
- Field replaceable switch and capacitor without compromising weather resistance or agency approvals
- Easy access to fuel strainer: five minutes to clean strainer without removing the pump from the tank
- Overhaul kits and replacement parts available to extend the service life of the pump
- Vertical Nozzle Orientation, keeps tanks clean and offers easy nozzle placement after use

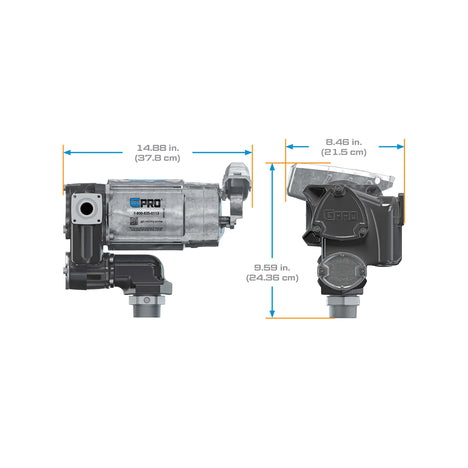

Specifications
| Max. Flow Rate | 35 GPM (132 L/min) |
| Voltage Input | 120V (AC) 60Hz, 240V (AC) 60Hz Dual Voltage Configurable |
| Horsepower | 1 |
| Technology | Sliding Vane |
| Amps Rated | 8.1 amps (120V/60Hz) / 4.3 amps (240V/60Hz) *NOTE: 50Hz supply voltage will produce a pump rate of 110 L/min, suction lift of 3.9m, current draw of 4.8A, and motor performance of 1405 RPM, and .83 HP. |
| Motor Protection | Thermal Breaker (Automatically Resets) |
| Duty Cycle | 30 min on/30 min off |
| Power Cord | Not Included |
| Max. Discharge Pressure | 24 PSI (1.65 bar) |

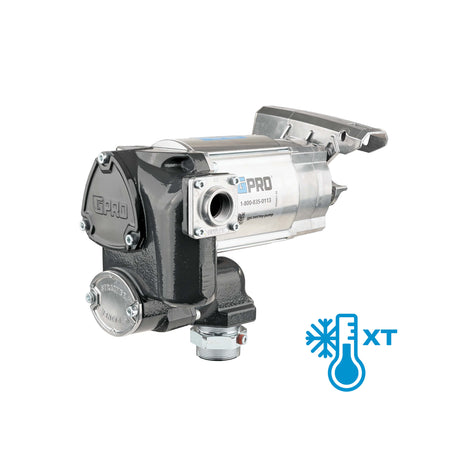

| Operating Temperature | -40° F to 125° F (-40° C to 52° C) |
| Suction Lift | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Discharge Lift | Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C) |
| Pump Housing Material | Powder coated Cast Iron & Aluminum |
| Wetted Materials | Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel |
| Mounting Type/Thread | Direct Mount, 2in. MNPT |
| Suction Pipe | Not included |
| Inlet | 1.25-inch FNPT |
| Outlet | 1-inch FNPT |
| Dispensing Hose | Not included |
| Nozzle | Not included |
| Nozzle Holder Type | Lockable with spout guard |
