Description

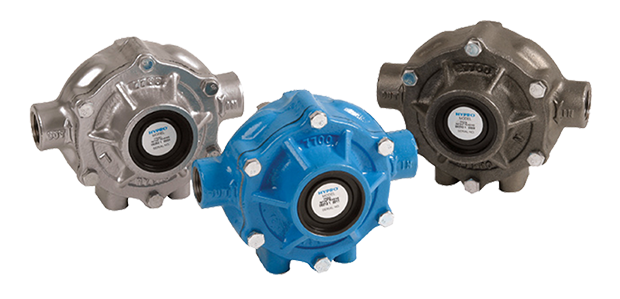

Pentair Hypro 1700 Series 5 Roller Pumps
The 1700 series, 5 roller, pump achieves up to 45 gpm (170 lpm) and 200 psi (13.8 bar). The series includes models 1700C, 1700N and 1700XL.
- Rollers: Super Rollers standard[Poly (T3) and Teflon® (T2) available]
- Recommended PTO torque arm kit 3430-0540
- Rotor: Cast Iron, Ni-Resist or Silvercast
Specifications
Pump Type:Roller Pump
Max Fluid Temperature:140°F/60°C
Ports:1" NPT (BSP available on 1700C)
Housing Material:Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Seal Material:Viton® standard
WEIGHT:19 lbs./8.6 kg
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output (US) | Shaft Output (Metric) | Shaft |
|---|---|---|---|---|---|---|---|---|
|
1700C
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8 mm
|
Solid
|
|
1700C-BT
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8 mm
|
Solid
|
|
1700C-T3
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8 mm
|
Solid
|
|
1700C-R
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8 mm
|
Solid
|
|
1700XL
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8 mm
|
Solid
|
|
1700XL-MR
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8mm
|
Solid
|
|
1700XL-R
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8mm
|
Solid
|
|
1700XL-T3
|
45
|
170
|
200
|
13.8
|
1000
|
15/16"
|
23.8mm
|
Solid
|
