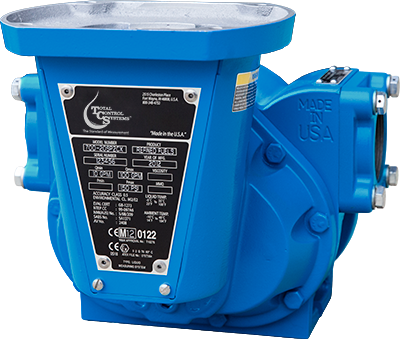

TCS 700-15 Rotary Meter - TCS700-15

Total Control SystemsSKU: TCS700-15
No reviews

Online Shipping
All displayed shipping rates are calculated as an online estimate only. Shipping rate adjustments may be required after reviewing the items from your order. Pricing displayed is for the product only and does not include shipping, taxes, duties or tariffs.

Price:
Sale price$33,172.80

Shipping calculated at checkout

Description

TCS 700-15 Rotary Meter Package

Includes:


Flange Connections: 1 1/2” NPT Flange; 1” & 2” Options

The 700 1.5" rotary flow meter is engineered to meter liquid at up to 60 GPM (227 LPM).

Specifications:
  • Flow: Capable of up to 60 GPM (227 LPM);  Bi-directional Flow
  • Flange Connections: 1 1/2” NPT Flange; 1” & 2” Options
  • Linear Accuracy: Capable of ± 0.15% of over the full flow range
  • Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Working Pressure: 150 PSI (10.5 BAR)
  • Working Temperature: - 40 to 160°F (- 40 to 71°C)

700 SPA - Standard Petroleum Aviation Meter

TCS700-15SPA2DX

700 SPA Meter Specific

  • Housing: Hardcoat Anodized Aluminumnew 700 cutaway 2
  • Rotors: Hardcoat Anodized Aluminum
  • Rotor Journals: Plated Stainless Steel
  • Bearing Plates: Ni-Resist
  • Bearing Sleeves: Carbon Graphite
  • Timing Gears: Stainless Steel
  • Packing Seal: FKM
  • Body O-ring: FKM

All 700 Meters

  • Flow: Capable of up to 1,000 GPM (3,785 LPM);  Bi-directional Flow
  • Linear Accuracy: Capable of ± 0.15% of over the full flow range
  • Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Temperature: - 40 to 160°F (- 40 to 71°C)

740 Air Eliminator & Strainer

TCS700-740-20S

A float and valve design senses and removes free air before it can enter the flow meter. Required for custody transfer applications to ensure the most precise measurement.

Size: 1-1/2", 2", 3" & 4"
Type: SP, SPA, SPD, IC, IP, AF, SS & SSD
Pressure: 150 PSI (10.5 BAR)
Temperature: -40F to 160F (-40C to 71C)
Material: Aluminum, Ductile Iron & Stainless Steel (2" only)
Seal: EPDM, FKM, PTFE or Simriz
Strainer Mesh: 40, 80 & 100 Mesh; 0.050 Perforation (Stainless Steel)
