Description
Weasler STANDARD AB4 Series Profile PTO Drive Shaft - 14006432ST
(FOR A 4' ROTARY CUTTER)
Mfr Part #: 14006432ST
Series: AB4
Type: Profile PTO Drive Shaft
Supplier: Weasler Engineering Inc.
Bore 1: 1.37"
Bore 2 Description: Round
Connection 2: Pin
Bore 1 Description: 1 3/8-6 Spline
Connection 1: Spring-Lok
Bore 2: 1.37"
Extended Length: 43.5"
Overall Compressed Length: 31.97"
Driveline Series: Italian
Outer Diameter: 6"

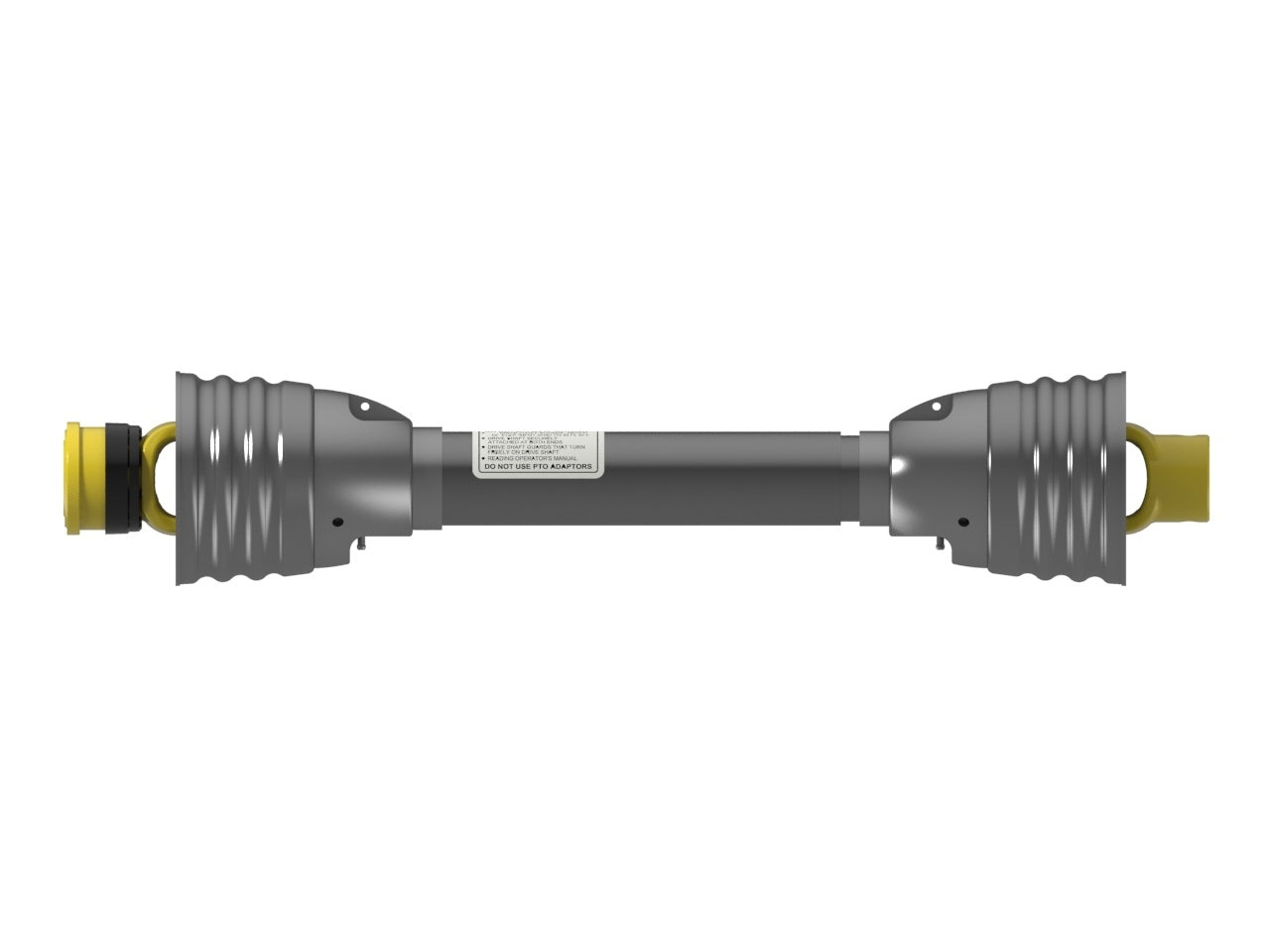

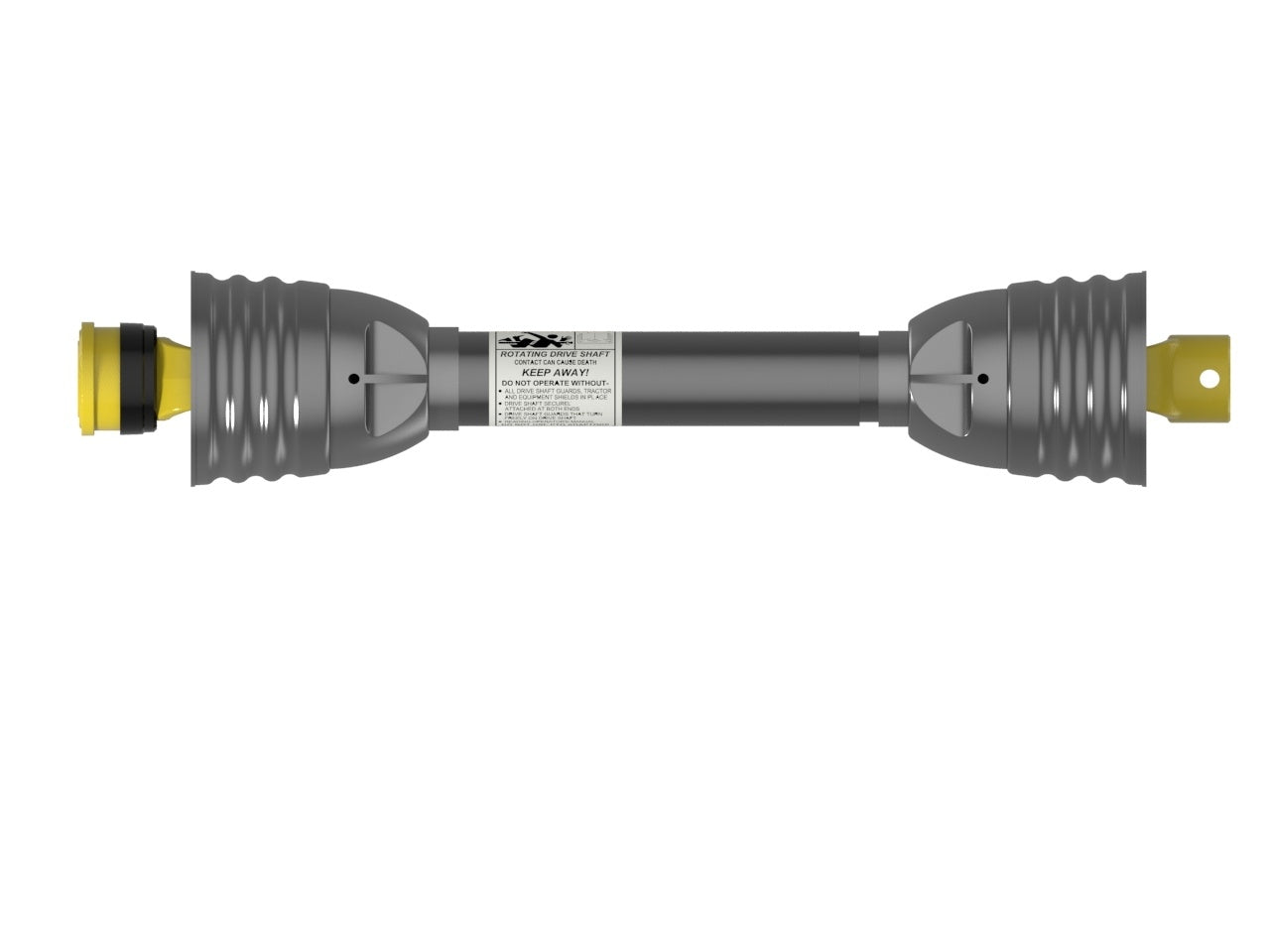

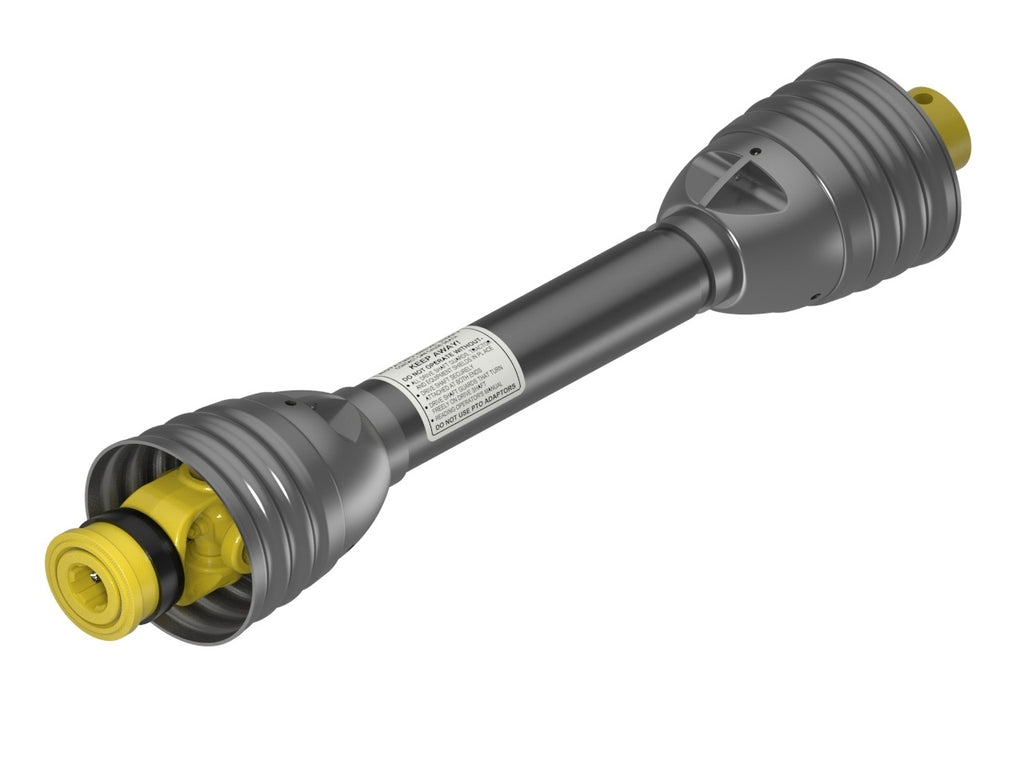

AB4 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and round pin implement connection. Note: Image color may not represent actual part.
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
PERFORMANCE BENEFITS
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles available.
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
DESIGN FEATURES
- Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
- Yokes: Interchangeable with standard yokes available in the market, meet all applicable safety standards.
- Cross & Bearing Kits: Standard kits require regular maintenance.
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 1.37 inches | 35 mm |
| Bore 2 | ROUND | |
| Compressed (Closed) Length | 24.02 inches | 610 mm |
| Compressed Overall Length | 31.97 inches | 812 mm |
| Connection 1 | SPRING-LOK | |
| Connection 2 | PIN | |
| Extended Length | 35.55 inches | 903 mm |
| Extended Overall Length | 43.50 inches | 1105 mm |
| HP@1000RPM | 56 HP | 42 kilowatts |
| HP@540RPM | 36 HP | 27 kilowatts |
| Length | 31.97 inches | 812 mm |
| Outside Diameter | 6.00 inches | 152 mm |
| Pin Hole | 0.51 inches | 13 mm |
| Pin Hole | 0.54 | |
| Shipping Dimensions | 31.97" L × 6" H × 6" W | 81cm L × 15cm H × 15cm W |
| Shipping Volume | 1150.92 in3 | 18860 cm3 |
| Shipping Weight | 23.00 pounds | 10 kilograms |
| Weight | 23.00 pounds | 10 kilograms |
