Description

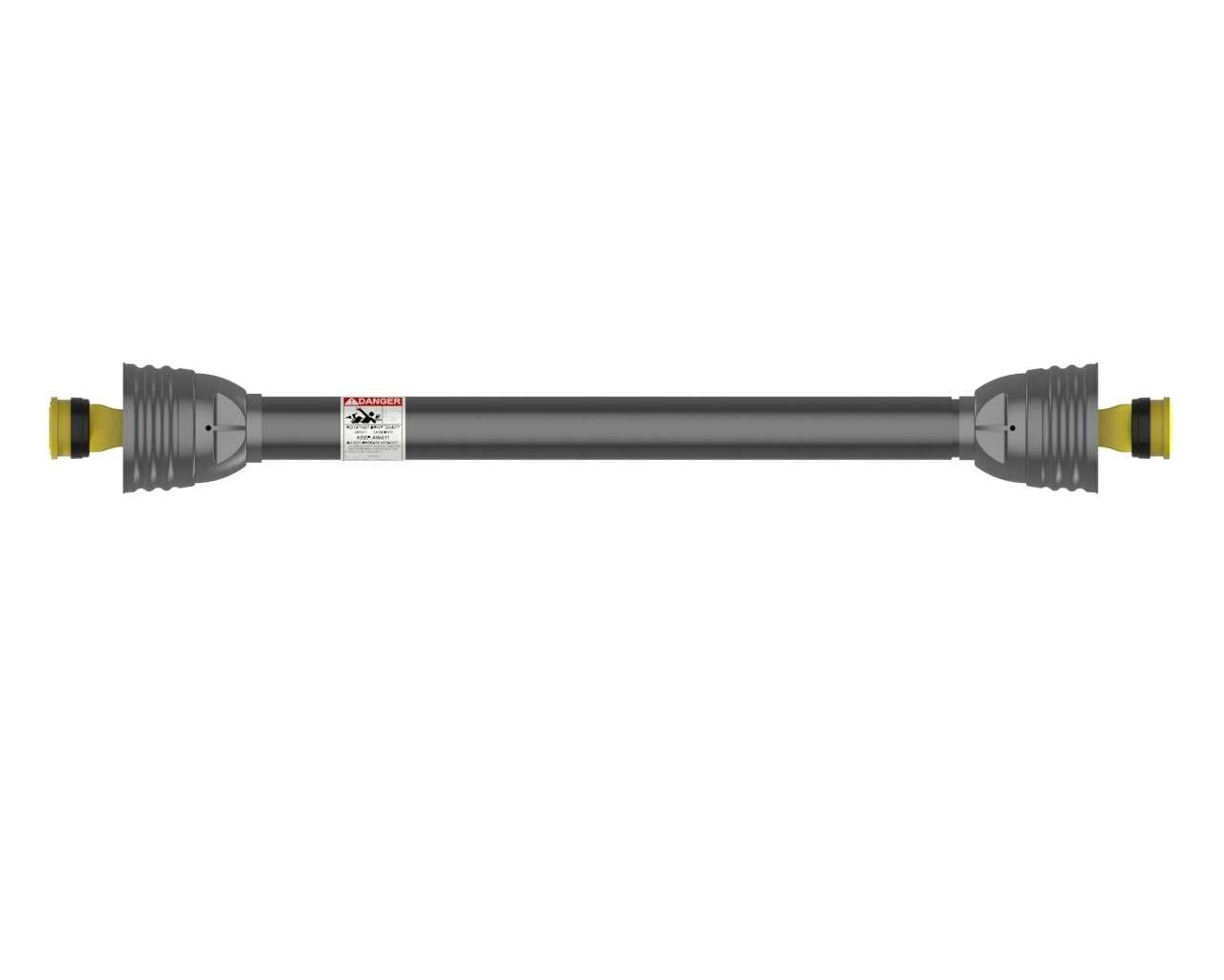

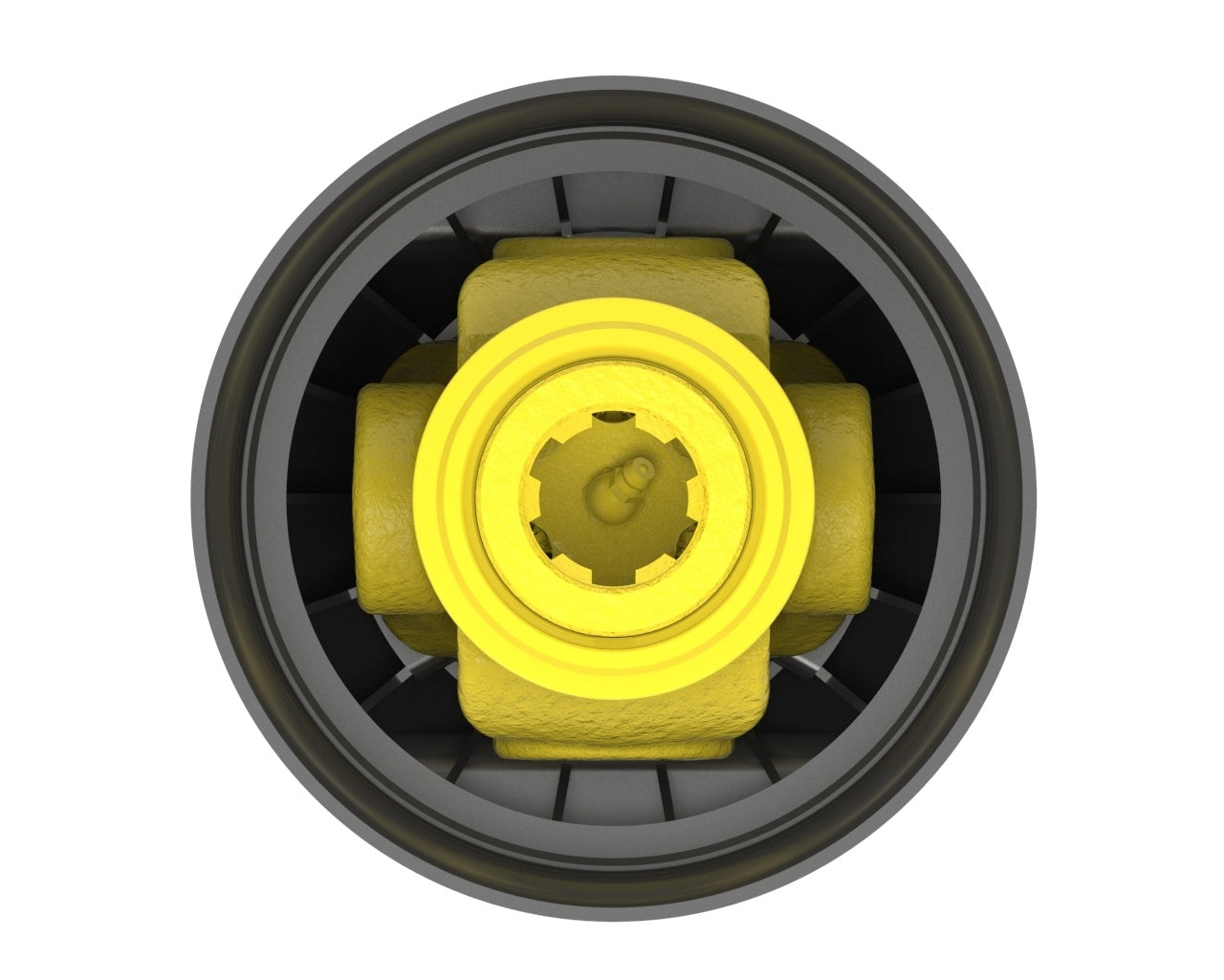

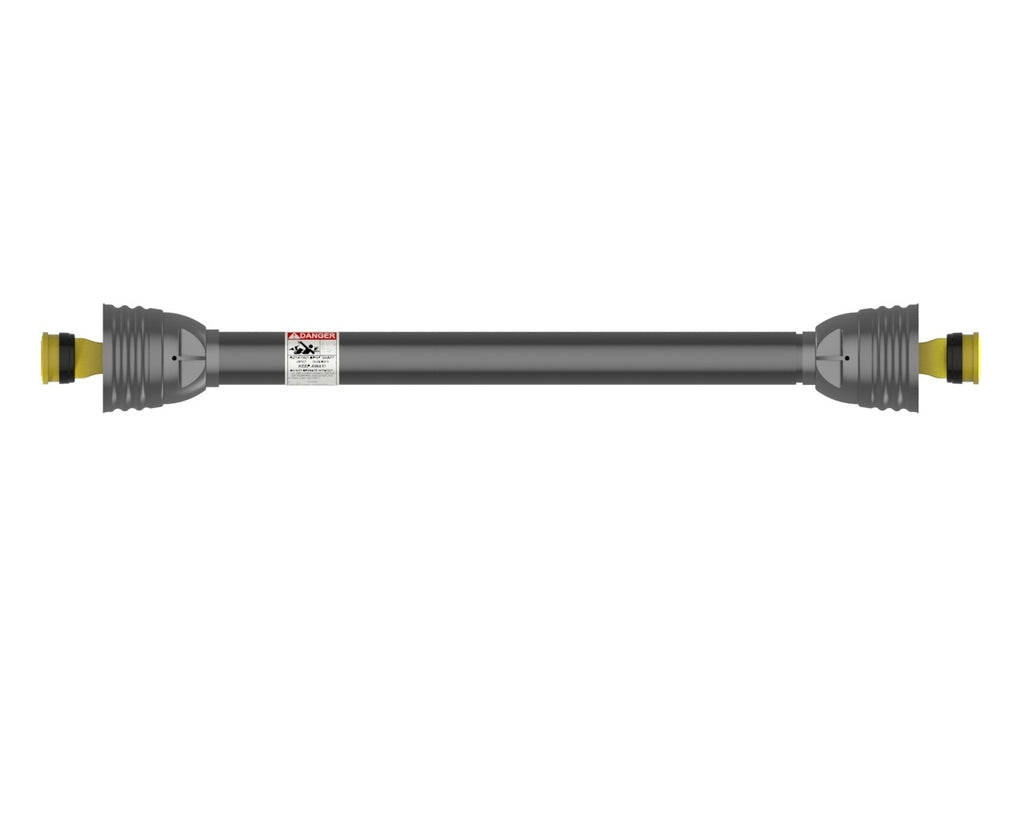

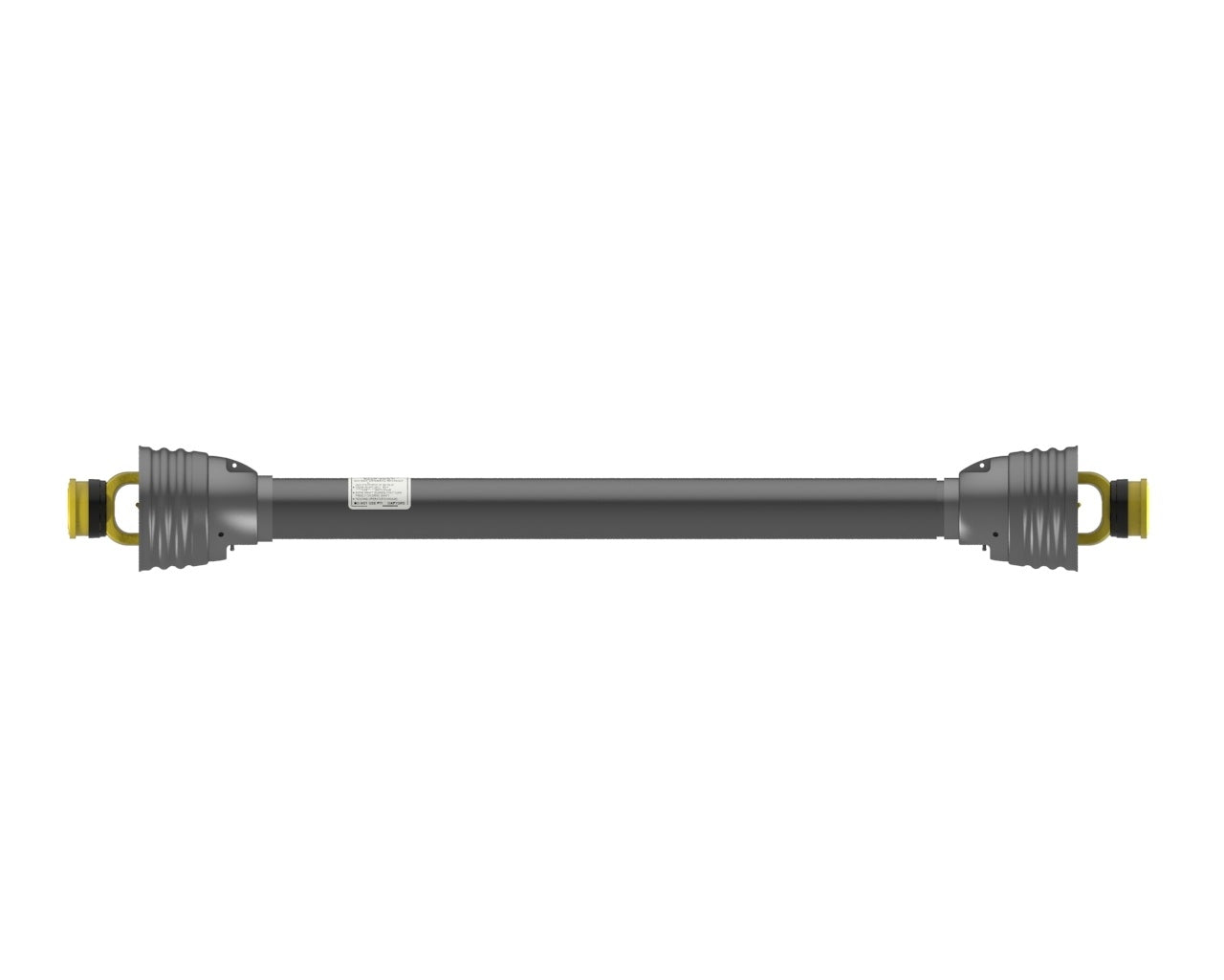

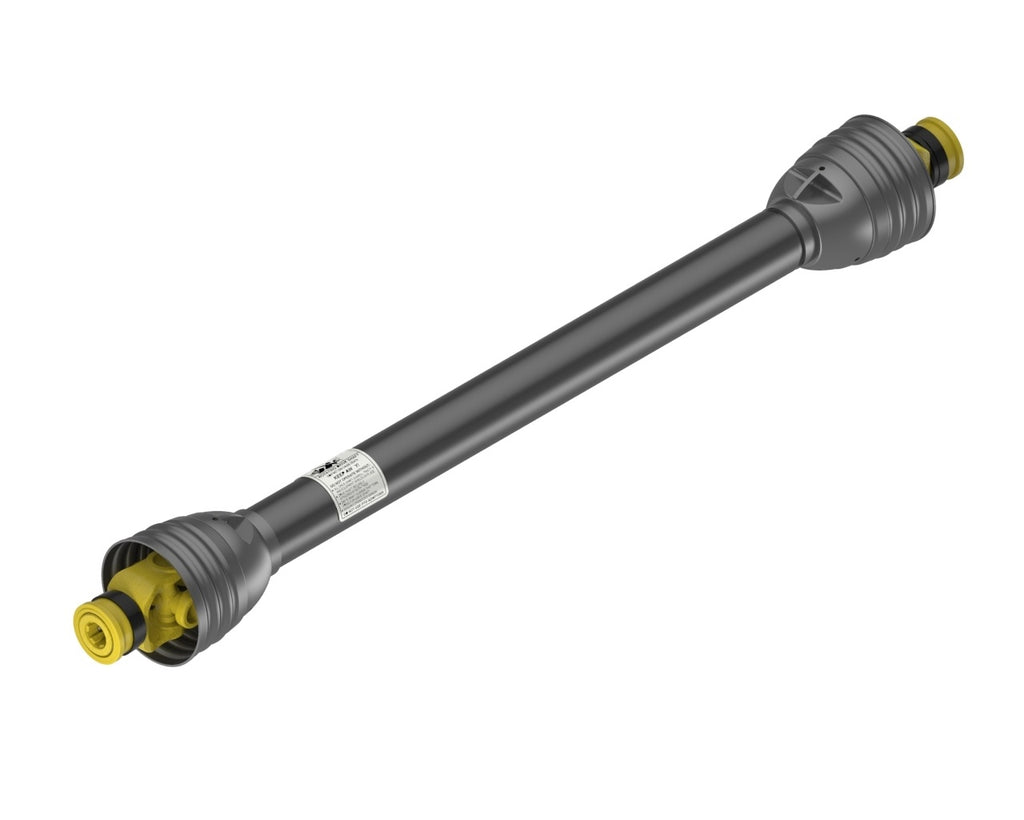

Weasler STANDARD AB6 Series Profile PTO Drive Shaft - 14006657ST
(ALL PURPOSE DRIVELINE)
Mfr Part #: 14006657ST
Series: AB6
Type: Profile PTO Drive Shaft
Supplier: Weasler Engineering Inc.
Bore 1: 1.37"
Bore 2 Description: 1 3/8-6 Spline
Connection 2: Spring-Lok
Bore 1 Description: 1 3/8-6 Spline
Connection 1: Spring-Lok
Bore 2: 1.37"
Extended Length: 57.83"
Overall Compressed Length: 56.94"
Driveline Series: Italian
Outer Diameter: 7.28"
AB6 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8-6 spline spring-lok implement connection. Note: Image color may not represent actual part.
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
PERFORMANCE BENEFITS
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles available.
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
DESIGN FEATURES
- Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock systems
- Yokes: Interchangeable with standard yokes available in the market, meet all applicable safety standards.
- Cross & Bearing Kits: Standard kits require regular maintenance.
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 1.37 inches | 35 mm |
| Bore 2 | 1 3/8-6 SPLINE | |
| Compressed (Closed) Length | 47.64 inches | 1210 mm |
| Compressed Overall Length | 56.94 inches | 1446 mm |
| Connection 1 | SPRING-LOK | |
| Connection 2 | SPRING-LOK | |
| Extended Length | 73.90 inches | 1877 mm |
| Extended Overall Length | 83.20 inches | 2113 mm |
| HP@1000RPM | 99 HP | 74 kilowatts |
| HP@540RPM | 64 HP | 48 kilowatts |
| Length | 56.94 inches | 1446 mm |
| Outside Diameter | 7.28 inches | 185 mm |
| Shipping Dimensions | 56.94" L × 7.28" H × 7.28" W | 145cm L × 18cm H × 18cm W |
| Shipping Volume | 3017.73 in3 | 49452 cm3 |
| Shipping Weight | 46.00 pounds | 21 kilograms |
| Weight | 46.00 pounds | 21 kilograms |
